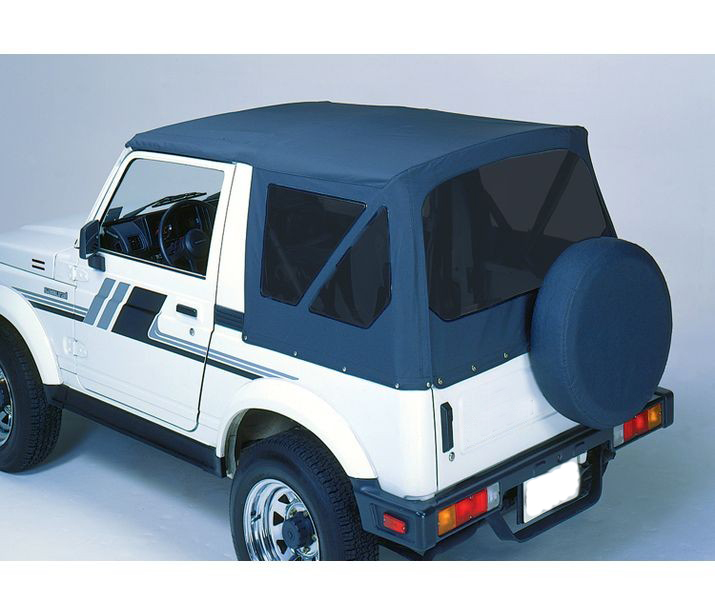

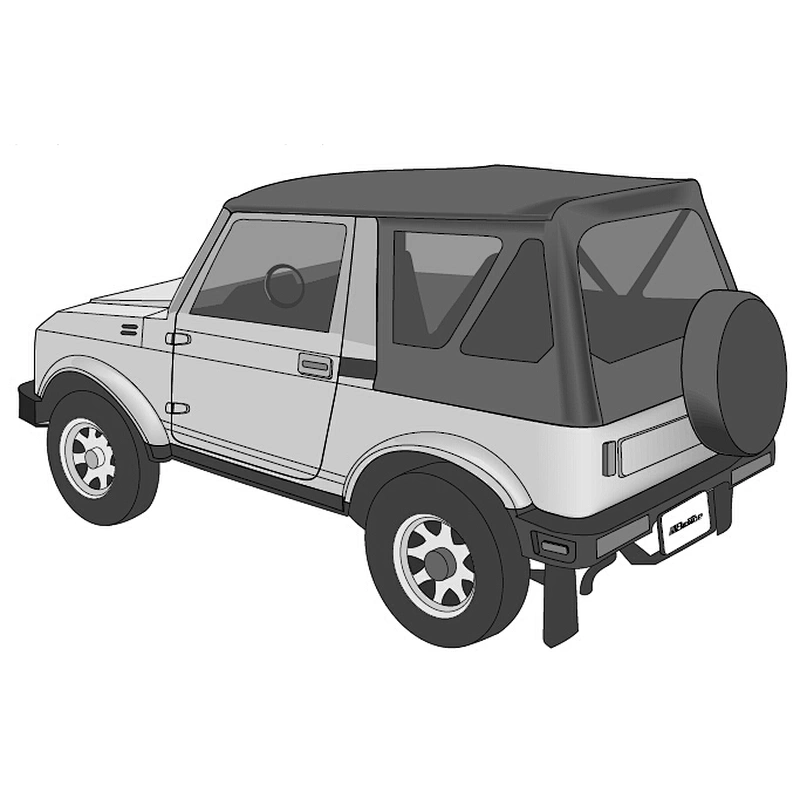

Black Denim Canvas Soft Top WithTinted Windows for Suzuki Samurai 1988-1994

• Model:Samurai
• Year:1988-1998
• Model Number:51361
• Brand Name:/
• Car Fitment:SUZUKI
• Place of Origin:Jiangsu, China
• Type:frameless fabric soft top
• model:for Suzuki Samurai 1988-1994
• Material:PVC
• Color:Black Diamond/ Charcoal/ Black Denim / Dark Tan/ Spice
• Features:Weatherproof
• Warranty:1 Year from The Date of Purchase
• Certificate:TUV/SGS

Car Soft Top for Suzuki Samurai
Model: 51361
Material: Fabric / PVC
The following colors are avaiable

Black Diamond/ Black Denim/ Black Crush/Charcoal / Dark Tan/ Spice / White etc.

1 Year Limited Warranty

                                                      WARNING

This product is designed to enhance the appearance of the vehicle and to shield the occupants from ordinary weather conditions.
Do not rely in any way on the components of this product to contain occupants within the vehicle, or to protect against
injury or death in the event of an accident. This top will not protect the occupants from falling objects. Never operate vehicle in
excess of manufacturer’s specifications.

WEAR SEAT BELTS AT ALL TIMES

ATTENTION ROOF RACK OWNERS
The soft top manufacturer’s tests indicate that this soft top can be damaged to the point of failure when used with various roof rack designs. If this replacement soft top is installed on a Samurai vehicle in conjunction with any form of roof rack product, the warranty is null and void.

                                           INSTALLATION GUIDE

Step One
Orient the top with the two snaps toward the front of the vehicle. Drape it over the vehicle. Open the hook and loop flaps over the doors. Snap the front snaps to the vehicle. Center the plastic strip and slip only the plastic into the channel along the top of the windshield.

Step Two
Drape the top over the rear bow. Slide the front edges of the side panels into the channel on the rear of the Sport Bar.

Step Three
Optional
If the Studs are missing from the bow on your vehicle, install the Body Studs included with your top. Center the rear seam on the bow and use the snap flap as a guide to mark the locations of the snaps. Center punch and drill a 3/32 inch hole for each stud. Install the studs with a #6 Sheet Metal Screw.

Step Four
Optional
If the Tension Straps are missing from your vehicle, install the straps included with your top. Center punch and drill a 7/32 inch hole on each side of the tailgate, above the existing bolt. Install each Tension Strap with a #10-24 x 3/4"Truss Head Phillips Screw and a #10-24 Locknut. Install the Tension Strap with the hook and loop fasteners facing the outside of the vehicle.

Step Five
Make sure that the straps sewn into the rear of the top are behind the rear bow.

Step Six
Thread the Tension Strap through the loop on the strap sewn into the rear of the top.
Pull the strap tight and secure it in placewith the hook and loop sewn to the strap.

Step Seven
Snap the top to the rear bow. The center snap flap will wrap around the bow from behind and the two outer snap flaps will wrap around the bow from the front.

Step Eight
Snap the snaps on the bottom of the side panels from front to back.

Step Nine
Fasten the bottom of the Rear Curtain to the Lift-A-Dots on the rear of the vehicle.

Step Ten
Wrap flaps around door frames andattach hook strips to loop strips.

Warning: When operating the vehicle with the rear window open, one or more door windows should be open for proper ventilation.

Your top is made of the finest materials available. To keep it looking new and for the maximum possible wear, it will need periodic cleaning and maintenance.

Washing: The top fabric should be washed often using soap, warm water and a soft bristle brush. Rinse with clear water to remove all traces of soap.

Windows: Keep windows clean to avoid scratching. DO NOT use a brush on the windows! Wash with a watersoaked cloth or sponge and a mild dishwashing detergent.

NEVER WIPE THE WINDOWS WHEN THEY ARE DRY. Be careful when cleaning snow or frost from the vinyl windows since they are easily scratched and may crack at low temperatures. DO NOT roll the sides or rear window in cold weather. The windows become stiff and will crack.
