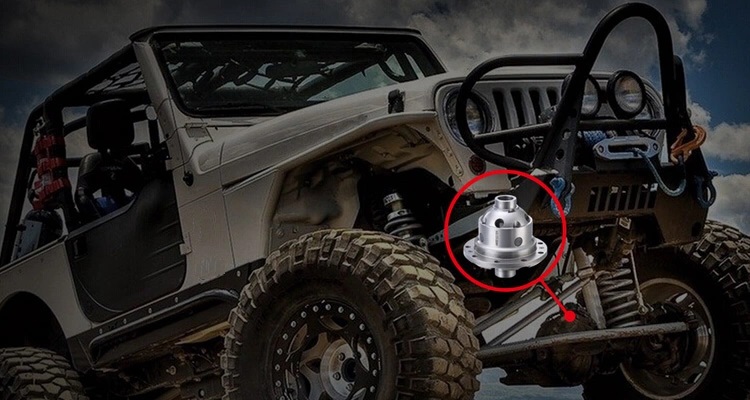

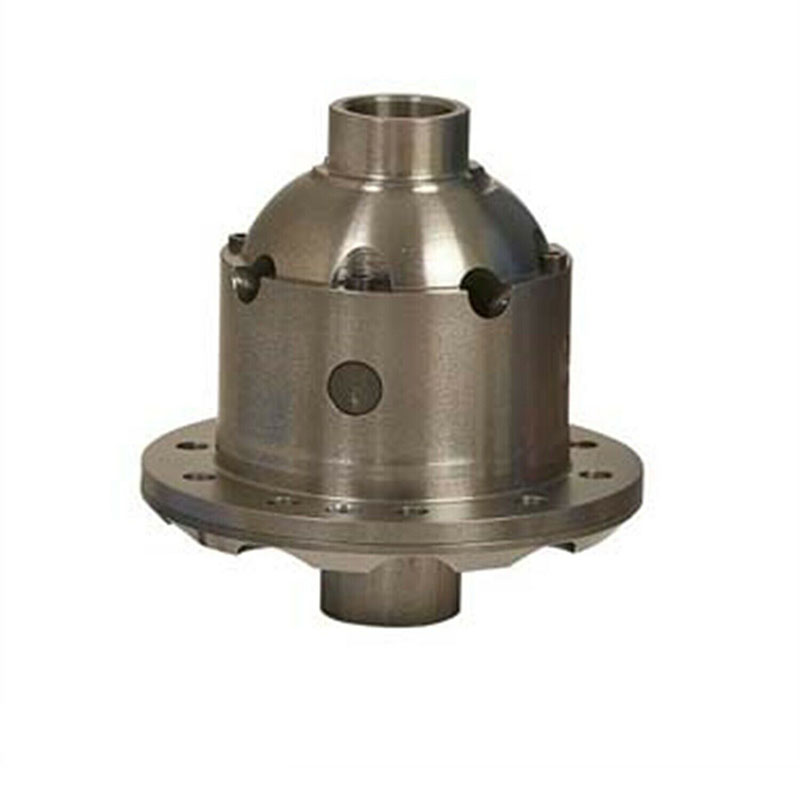

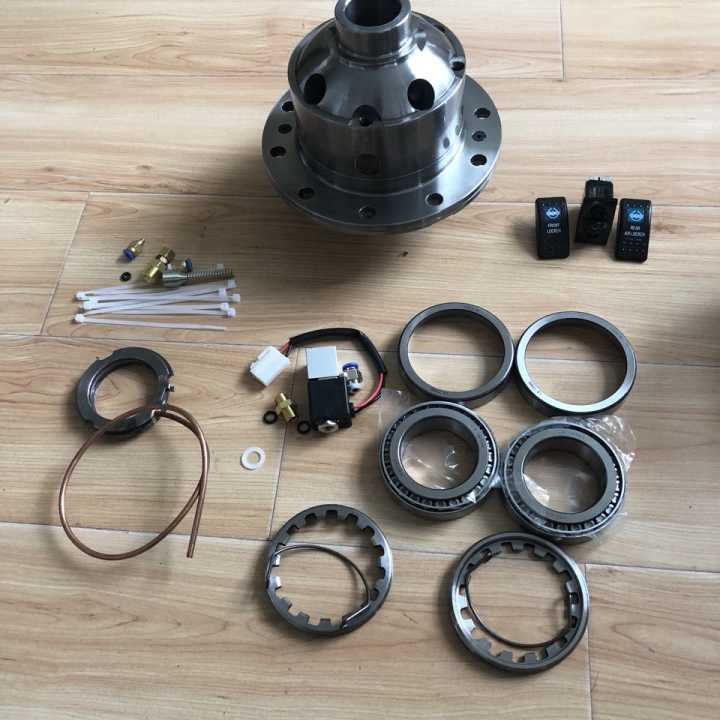

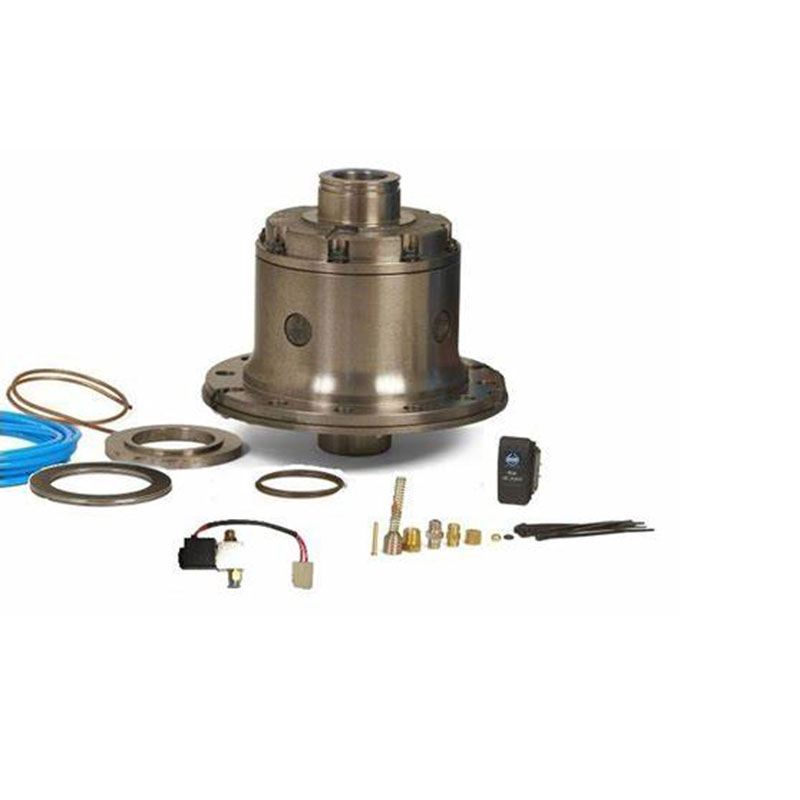

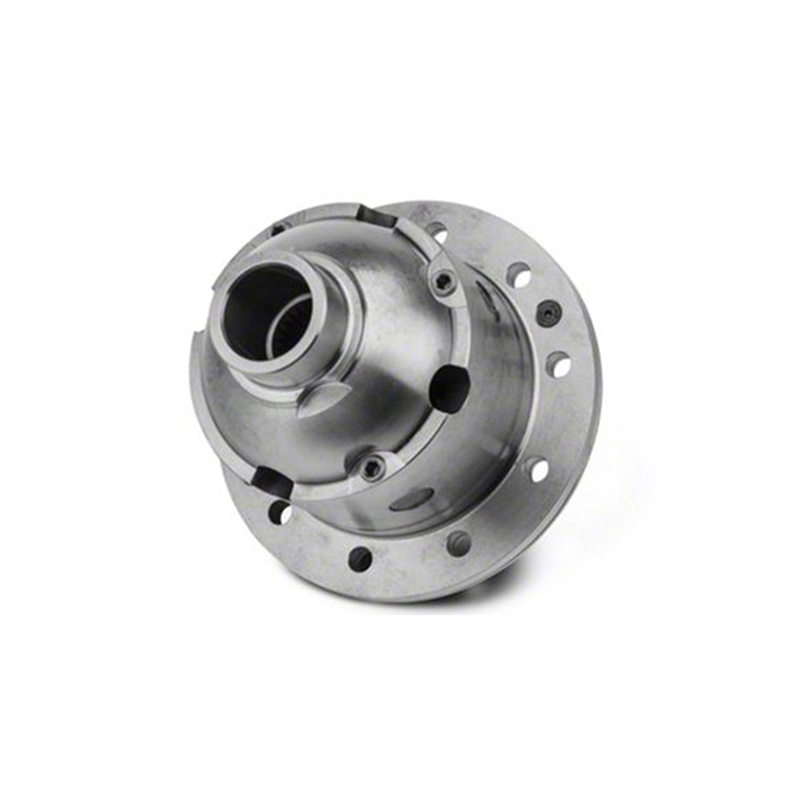

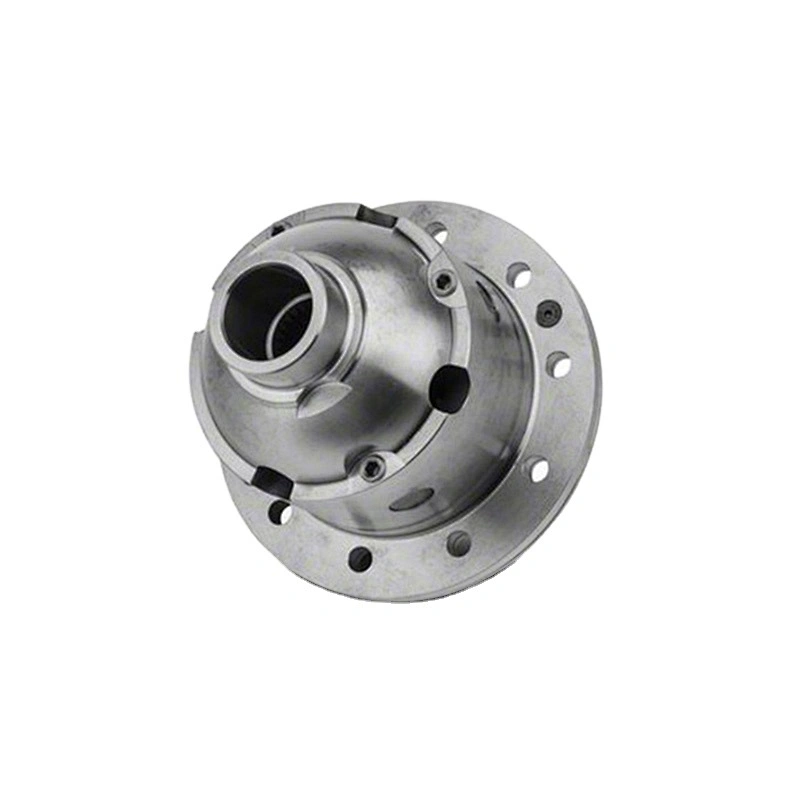

- Product name:Air Locker
- Part No.:RD100
- MOQ:1 Set
- Delivery time:7-35 days
- Packing:Neutral Packig
- Warranty:12 Months
- Certificate:ISO9001
- Car Fitment:JEEP
- Year:1966-1987
- Model:CJ5 - CJ8
- Place of Origin:CN;JIA
- OE NO.:RD100
- Brand Name:/
Product Name | Air Locker | ||||||
Part No. | RD100 | ||||||
MOQ | 1 set if we have them in stock | ||||||
Warranty | 12 months | ||||||
Type | 100% brand new | ||||||
Delivery time | 7-35 days | ||||||
Vehicle/Model | Axle Loc'n | Year | Description | Shaft Diameter | Shaft Spline | Ratio | Part No. |
Fit for CJ(5, 6, 7 & 8),for YJ & TJ Wrangler,for XJ Cherokee, for XJ Wagoneer, for ZJ, for WJ Grand Cherokee3,4 | Front | 1971 on | Da/ na 30 | 29.5 (1.16") | 27 | 3.73 & UP | RD100 |
3.54 & DN | RD101 | ||||||
2003 on | for TJ Wrangler Rubicon w/ OEM 4.10:1 gears | 33.3 (1.31") | 30 | 4.10:1 | RD117 | ||
Rear | 1990 on | Da/ na 351, C-clip, XJ, YJ, ZJ, TJ, WJ | 29.5 (1.16") | 27 | 2.73-3.31 | RD103 | |
3.54 & UP | RD102 | ||||||
2003 on | for TJ Wrangler Rubicon w/ OEM 4.10:1 gears | 33.3 (1.31") | 30 | 4.10:1 | RD11 | ||
1993-2004 | Da/na 44A, ZJ C-clip;WJ non C-clip | 33.3 (1.31") | 30 | All | RD226 | ||
1997-00 | for Chrysler 8.25"dia. RG, C-clip | 30.7 (1.21") | 29 | All | RD93 | ||
to 1996 | for Chrysler 8.25"dia. RG, C-clip | 29.5 (1.16") | 27 | All | RD112 | ||
1997 on | Da/na 44, TJ model only3 | 33.3 (1.31") | 30 | 3.92 & UP | RD116 | ||
3.73 & DN | RD117 | ||||||
1985-89 | Da/na 351, non C-clip | 29.5 (1.16") | 27 | 2.73-3.31 | RD103 | ||
3.54 & UP | RD102 | ||||||
1987-89 | Da/na 44, Commanche truck | 33.3 (1.31") | 30 | 3.92 & UP | RD116 | ||
3.73 & DN | RD117 | ||||||
1986-91 | Da/na 44, XJ w/ metric ton package | 33.3 (1.31") | 30 | 3.92 & UP | RD116 | ||
3.73 & DN | RD117 | ||||||
1976-85 | AM/C Model 20, 8.875"dia. RG | 31.8 (1.25") | 29 | 3.08 & UP | RD186 | ||
2.73 & DN | RD187 | ||||||
1969-75,86 | Da/na 44-3R | 33.3 (1.31") | 30 | 3.92 & UP | RD116 | ||
3.73 & DN | RD117 | ||||||
1966-68 | Da/na 44-R | 31.8 (1.25") | 19 | 3.92 & UP | NA | ||
3.73 & DN | NA | ||||||
For JK Jeep Wrangler (not Rubicon models) | Front | 2007 on | Da/na 30 | 29.5 (1.16") | 27 | 3.73 & UP | RD100 |
3.54 & DN | RD101 | ||||||
Rear | 2007 | Da/na 35 | TBD | TBD | All | TBD | |
2007 on | Da/na 44 | 33.3 (1.31") | 30 | All | RD117 | ||
For KJ Jeep Liberty | Front | 2001 on | Da/na 30 IFS | 29.5 (1.16") | 27 | 3.73 & UP | RD100 |
3.54 & DN | RD101 | ||||||
Rear | 2001 on | for Chrysler 8.25"dia. RG, C-clip | 30.7 (1.21") | 29 | All | RD936 | |
Full size AM/C for Cherokee, For Grand Wagoneer | Front | 1974-93 | Da/na M44-1F | 33.3 (1.31") | 30 | 3.92 & UP | RD116 |
3.73 & DN | RD117 | ||||||
1971-73 | Da/na 30 | 29.5 (1.16") | 27 | 3.73 & UP | RD100 | ||
3.54 & DN | RD101 | ||||||
Rear | 1986-93 | Da/na 44 | 33.3 (1.31") | 30 | 3.92 & UP | RD116 | |
3.73 & DN | RD117 | ||||||
1980-86 | AM/C Model 20, 8.875"dia. RG | 31.8 (1.25") | 29 | 3.08 & UP | RD186 | ||
2.73 & DN | RD187 | ||||||
1969-79 | Da/na M44-3R | 33.3 (1.31") | 30 | 3.92 & UP | RD116 | ||
3.73 & DN | RD117 | ||||||
1966-69 | Da/na M44-R | 31.8 (1.25") | 19 | 3.92 & UP | NA | ||
3.73 & DN | NA | ||||||
For J10, Light Truck, For FC150, 170, Honcho | Front | 1971-88 | Da/na M44-1F | 33.3 (1.31") | 30 | 3.92 & UP | RD116 |
3.73 & DN | RD117 | ||||||
Rear | 1980-88 | AM/C Model 20, 8.875"dia. RG | 31.8 (1.25") | 29 | 3.08 & UP | RD186 | |
2.73 & DN | RD187 | ||||||
1970-88 | Da/na M44-R | 33.3 (1.31") | 30 | 3.92 & UP | RD116 | ||
3.73 & DN | RD117 | ||||||
1966-69 | Da/na M44-R | 31.8 (1.25") | 19 | 3.92 & UP | NA | ||
3.73 & DN | NA | ||||||
For J20, Medium Truck, for J30, Heavy Truck | Front | 1970-88 | Da/na M44-1F | 33.3 (1.31") | 30 | 3.92 & UP | RD116 |
3.73 & DN | RD117 | ||||||
Rear | 1974-88 | Da/na M60-3R | 33.3 (1.31") | 30 | 4.56 & UP | RD162 | |
4.10 & DN | RD163 | ||||||
1969-73 | Da/na M60-2R | 38.1 (1.50") | 35 | 4.56 & UP | RD166 | ||
4.10 & DN | RD167 | ||||||
For WK/WH Grand Cherokee XK/XH Commander | Front | 2005-2010 | TBD | ||||
Rear | 2005-2010 | for Chrysler 8.25"dia. RG, non-C-clip | 30.7 (1.21") | 29 | ALL | RD93 | |
2005-2010 | for Chrysler 8.25"dia. RG, non-C-clip | 30.7 (1.21") | 30 | ALL | RD226 |

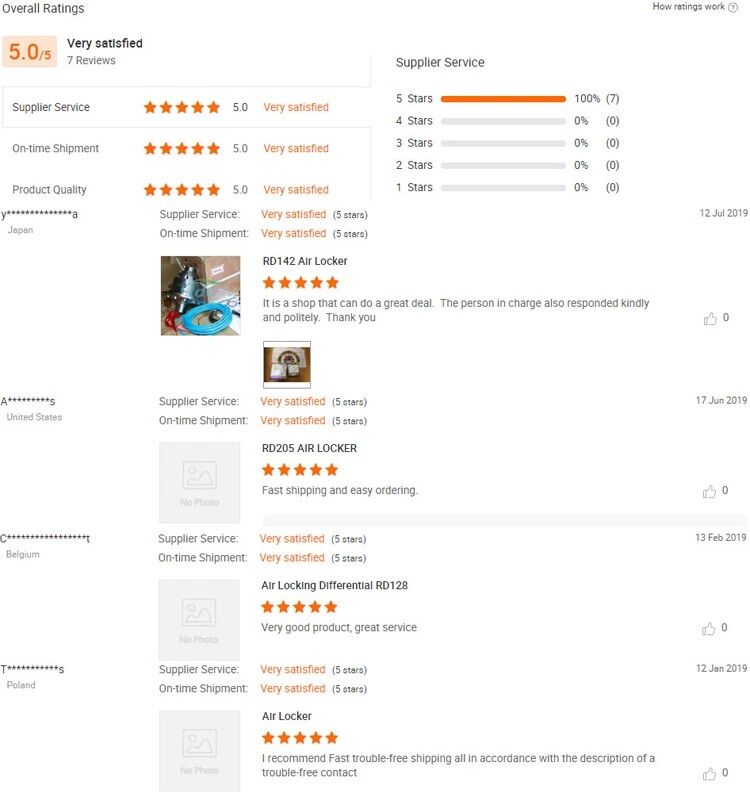

Customer Feedback
