- Purpose:for replace/repair
- Condition:New
- Model:B SERIES VANS, W100, D-SERIES, A100 Truck, W250, A100, Cj6, Wrangler, CHEROKEE (XJ), Cj5, CJ7, B1500, B150
- Year:1989-1989, 1992-1993, 1971-1983, 1981-1986, 1987-2019, 1970-1979, 1964-1970, 1965-1998, 1967-1970, 1998, 1992-1994, 1972-1975, 1983-2001
- OE NO.:RD117
- Car Fitment:Dodge, JEEP, dodge van
- Brand Name:PERFECTRAIL
- Place of Origin:Jiangsu, China

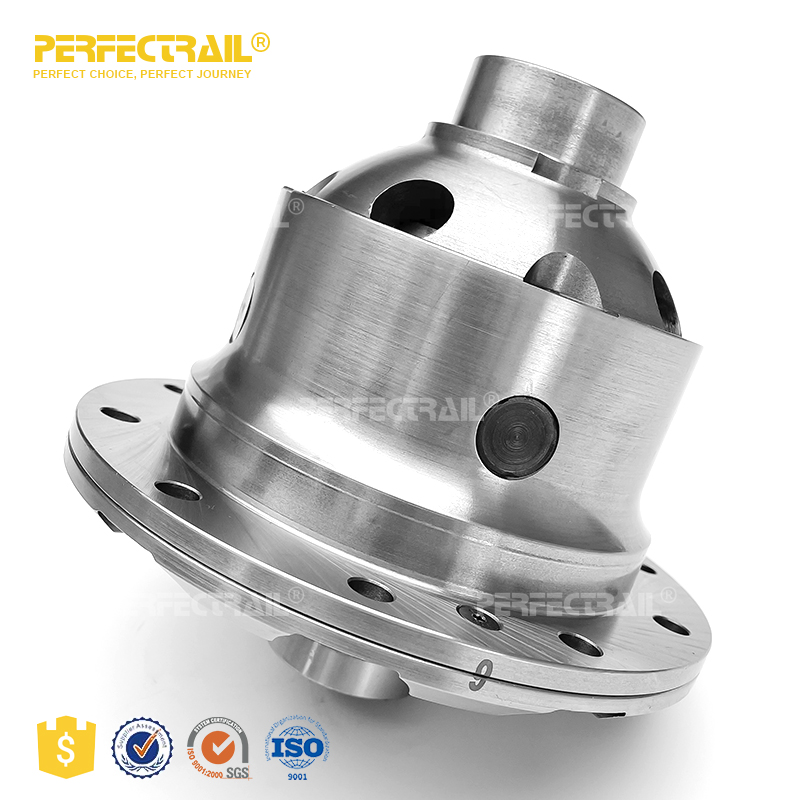

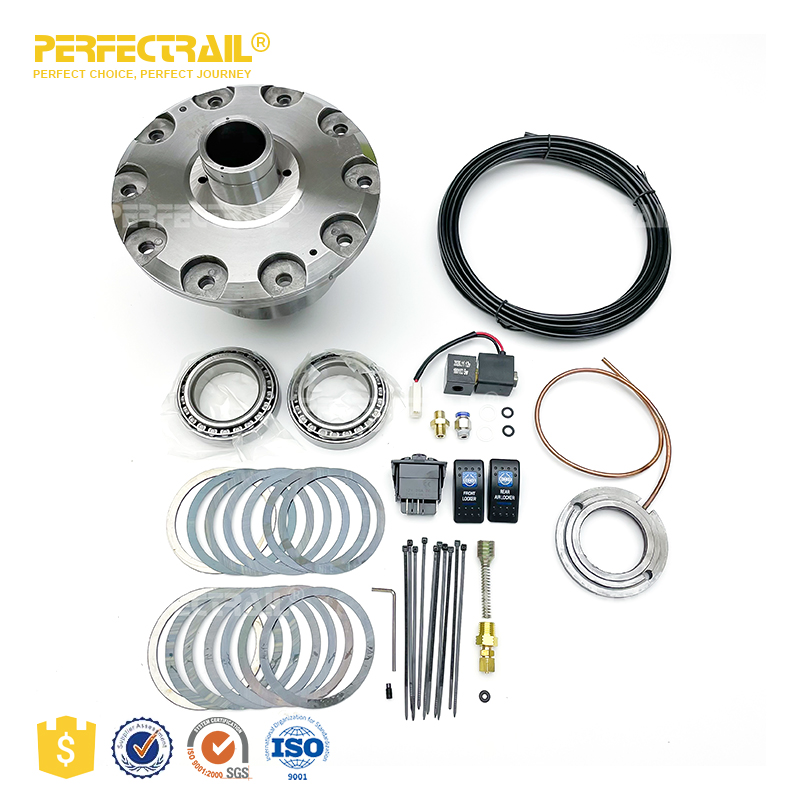

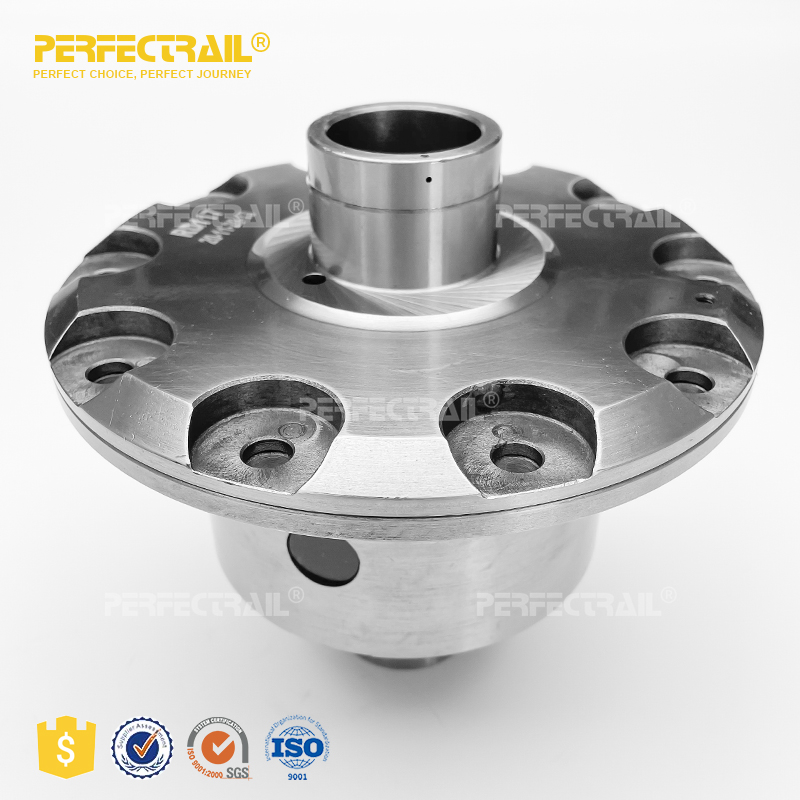

- Product name:Air Locking Differential
- Part No.:RD117
- MOQ:1 Set
- Delivery time:7-35 days

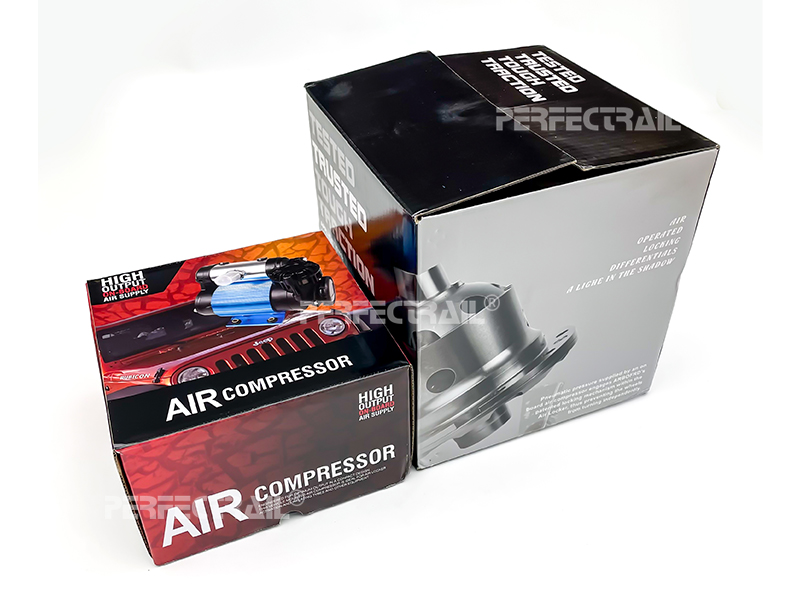

- Packing:Neutral Color Packing
- Warranty:12 Months
- Certificate:ISO9001/TS16949
- Port:Ningbo/Shanghai/Nanjing
- Shaft Spline:30
- Ratio:4.10:1
Product Name | Air Locking Differential | ||||||
Part No. | RD117 | ||||||
MOQ | 1 set if we have them in stock | ||||||
Warranty | 12 months | ||||||
Type | 100% brand new | ||||||
Delivery time | 7-35 days | ||||||
Vehicle/Model | Axle Loc'n | Year | Description | Shaft Diameter | Shaft Spline | Ratio | Part No. |
For 100, 150, 200, 250, A, B, D, W | Front | All | Dana 44, half ton truck | 33.3 (1.31") | 30 | 3.91 & UP | RD116 |
3.73 & DN | RD117 | ||||||
1975-93 | Dana 60, three quarter ton truck | 33.3 (1.31") | 30 | 4.56 & UP | RD162 | ||
4.10 & DN | RD163 | ||||||
1989-93 | Dana 70, three quarter ton truck | 35.8 (1.41") | 32 | 4.56 & UP | RD170 | ||
4.10 & DN | RD171 | ||||||
1988-95& 1971-82 | Dana 60HD, three quarter ton truck | 38.1 (1.50") | 35 | 4.56 & UP | RD166 | ||
4.10 & DN | RD167 | ||||||
Rear | 1991-93 | Dana 70, three quarter ton truck | 35.8 (1.41") | 32 | 4.56 & UP | RD170 | |
4.10 & DN | RD171 | ||||||
1988-93 | Dana 70U, three quarter ton truck | 38.1 (1.50") | 35 | 4.56 & UP | RD172 | ||
4.10 & DN | RD173 | ||||||
1983-93 | Dana 601 | 33.3 (1.31") | 30 | 3.54 | RD163 | ||
1972-82 | Dana 60 | 35.8 (1.41") | 32 | 4.56 & UP | RD164 | ||
4.10 & DN | RD165 | ||||||
38.1 (1.50") | 35 | 4.56 & UP | RD166 | ||||
4.10 & DN | RD167 | ||||||
33.3 (1.31") | 30 | 4.56 & UP | RD162 | ||||
4.10 & DN | RD163 | ||||||
For 300, 350, 400, B, C, M, W | Front | 1976-95 | Dana 60HD | 38.1 (1.50") | 35 | 4.56 & UP | RD166 |
4.10 & DN | RD167 | ||||||
1971-74 | Dana 70 | 35.8 (1.41") | 32 | 4.56 & UP | RD170 | ||
4.10 & DN | RD171 | ||||||
1955 on | Dana 60 | 33.3 (1.31") | 30 | 4.56 & UP | RD162 | ||
4.10 & DN | RD163 | ||||||
Rear | 1979-93 | Dana 70HD | 38.1 (1.50") | 35 | 4.56 & UP | RD172 | |
4.10 & DN | RD173 | ||||||
1971-93 | Dana 70 | 35.8 (1.41") | 32 | 4.56 & UP | RD170 | ||
4.10 & DN | RD171 | ||||||
1993 on | Dana 80 | 38.1 (1.50") | 35 | 3.73 & DN | RD173 | ||
40.6 (1.60") | 37 | 3.73 & DN | RD175 | ||||
For Dakota V6, 1500/2500 Van | Front | 1997 on | Dana 30 (non-standard) | 29.5 (1.16") | 27 | - | NA |
Rear | 1997 on | For Chrysler 8.25"dia. RG, C-clip | 30.7 (1.21") | 29 | All | RD934 | |
to 1996 | For Chrysler 8.25"dia. RG, C-clip | 29.5 (1.16") | 27 | All | N/A2 | ||
For RAM 1500 | Front | 1994-03 | Dana 44 | 33.3 (1.31") | 30 | 3.91 & UP | RD116 |
3.73 & DN | RD117 | ||||||
Rear | 1994 on | Chrysler 9.25"dia. RG | 31 | NA | |||
For RAM 2500, 3500 | Front | 1994-02 | Dana 60 | 35.8 (1.41") | 32 | 4.56 & UP | RD164 |
4.10 & DN | RD165 | ||||||
38.1 (1.50") | 35 | 4.56 & UP | RD166 | ||||
4.10 & DN | RD167 | ||||||
33.3 (1.31") | 30 | 4.56 & UP | RD162 | ||||
4.10 & DN | RD163 | ||||||
2003 on | AAM 925 (9.25") | 34.8 (1.37") | 33 | All | RD197 | ||
Rear | 1994-02 | Dana 70 | 35.8 (1.41") | 32 | All | RD170 | |
4.56 & UP | RD171 | ||||||
1994-02 | Dana 80 | 38.1 (1.50") | 35 | 4.10 & DN | RD173 | ||
Dana 80 | 40.6 (1.60") | 37 | 3.73 & DN | RD175 | |||
2003 on | AAM 1150 (11.5") | 39.0 (1.56") | 30 | 3.73 & DN | RD139 |

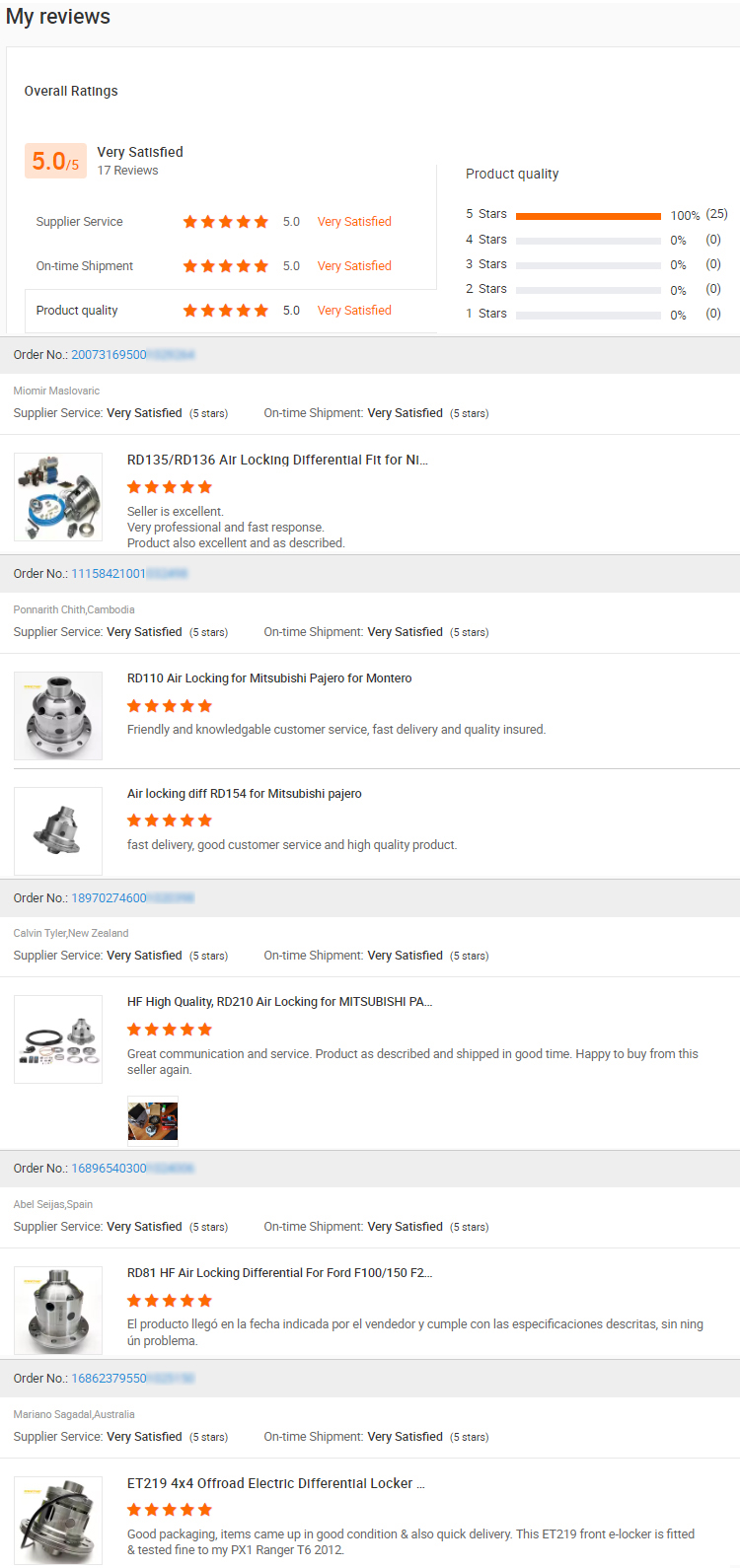

Customer Feedback
